MimirQ Full Operation Guide

This guide follows the actual user journey from deployment and first login through dataset creation, ingestion, parsing, indexing, retrieval, cited answers, evaluation, and production operations.

1. Start and sign in

git clone --depth 1 --single-branch https://github.com/skygazer42/MimirQ.git
cd MimirQ
make init
# Edit .env and set at least LLM_API_KEY for real model calls
make up-web
make ps
make api-ping

Open http://localhost:3000. The default stack contains eight containers: Web, API, worker, PostgreSQL, Milvus, Etcd, MinIO, and Redis.

Use the configured INITIAL_ADMIN_* account, or register the first owner only when the database is genuinely empty. If first-time setup is closed, an owner or tenant already exists; do not delete production volumes to bypass it. See Quick Start.

For source development, run make setup-host, then run make backend and make web in separate terminals. See Deployment for Windows, model networking, and worker options.

2. Complete the first knowledge-base loop

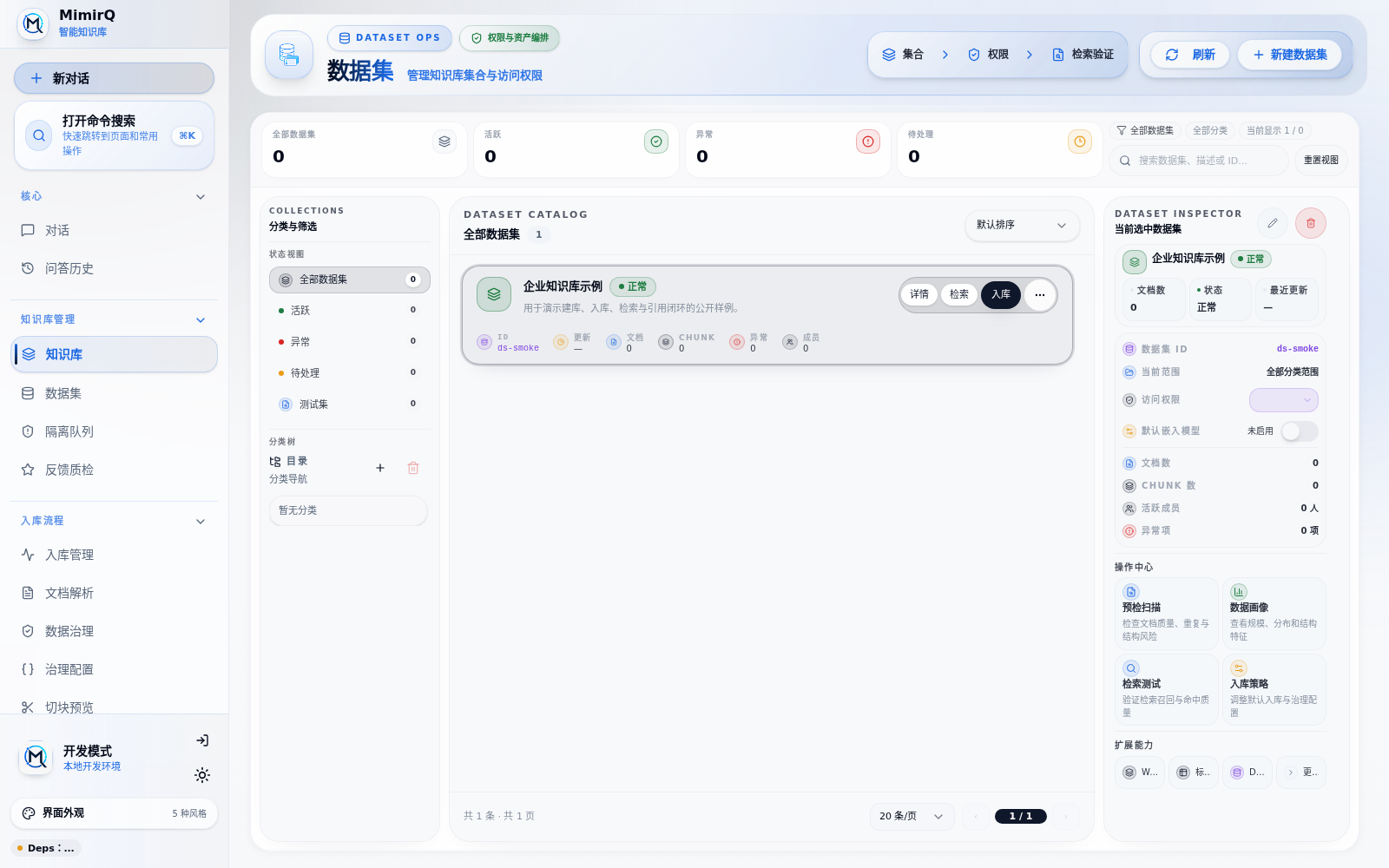

Create a dataset

1. Open /datasets.
2. Select New dataset.
3. Enter a name and description.
4. Choose its access scope and save.

A dataset is the boundary for permissions, indexes, retrieval scope, and evaluation. Separate content with different confidentiality or embedding runtimes.

Confirm the access scope, document count, and chunk count before ingestion.

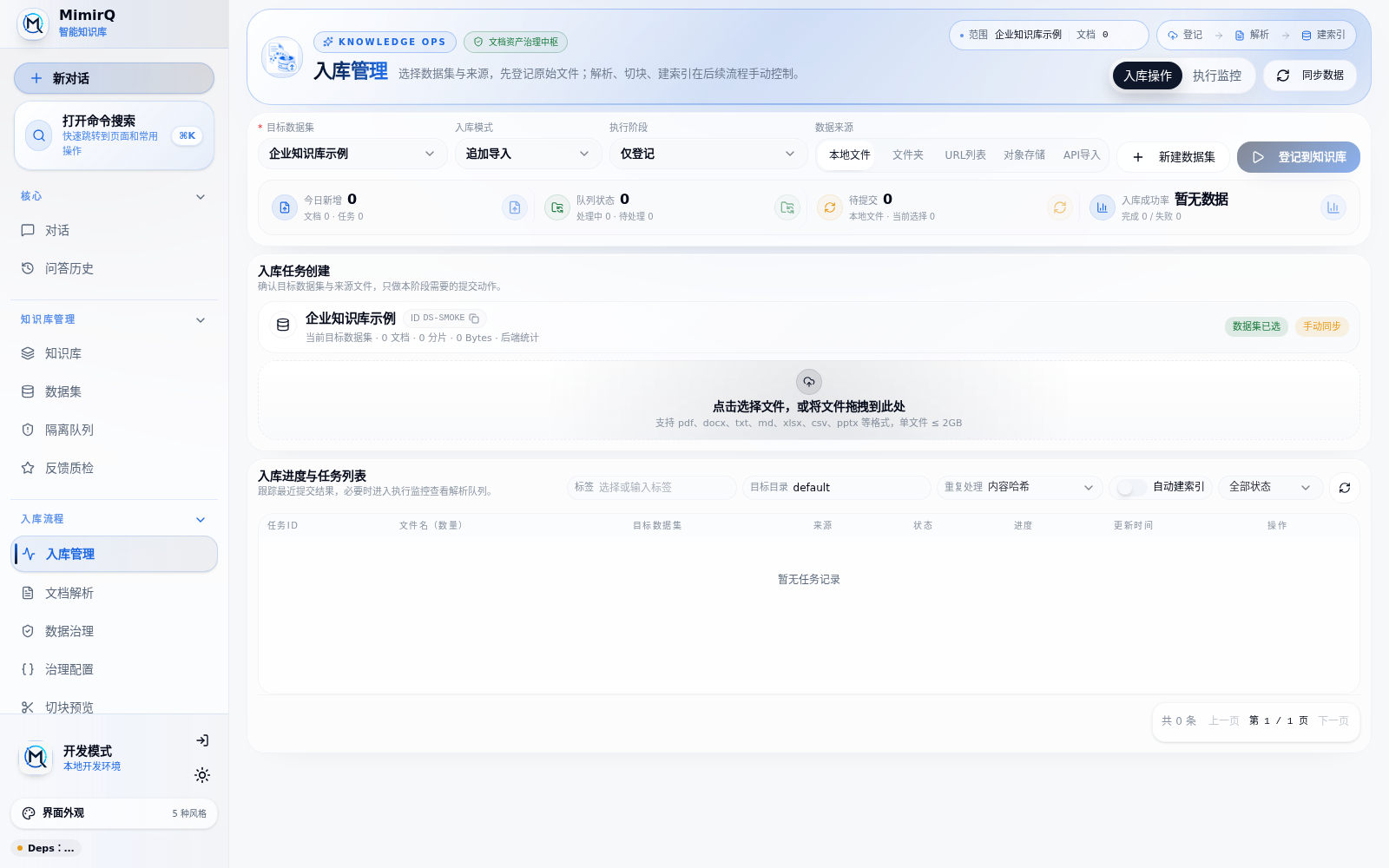

Upload and index

1. Open /knowledge/ingestion?datasetId=<dataset_id>.
2. Set the execution stage to parsing plus indexing.
3. Upload a small file containing a unique test phrase.
4. Start parsing and indexing.
5. Wait for pending and processing to become completed.

The ingestion workbench keeps the dataset, source, execution stage, progress, and failures in one place.

Inspect failed tasks instead of repeatedly uploading the file. Review quarantined documents under /knowledge/quarantine. Use Document troubleshooting for tasks that do not finish.

Inspect parsing and chunks

Entry	What to inspect
/parsing	Parser, task, and parsed output
/knowledge	Documents, status, metadata, and chunks
/chunk-preview	Heading, paragraph, table, and parent-child boundaries

Chunk Preview is an experiment surface; ingest production assets through the ingestion page. DeepDoc is the default parser. Start Marker, MinerU, PaddleOCR-VL, or another optional parser only when the document workload requires it.

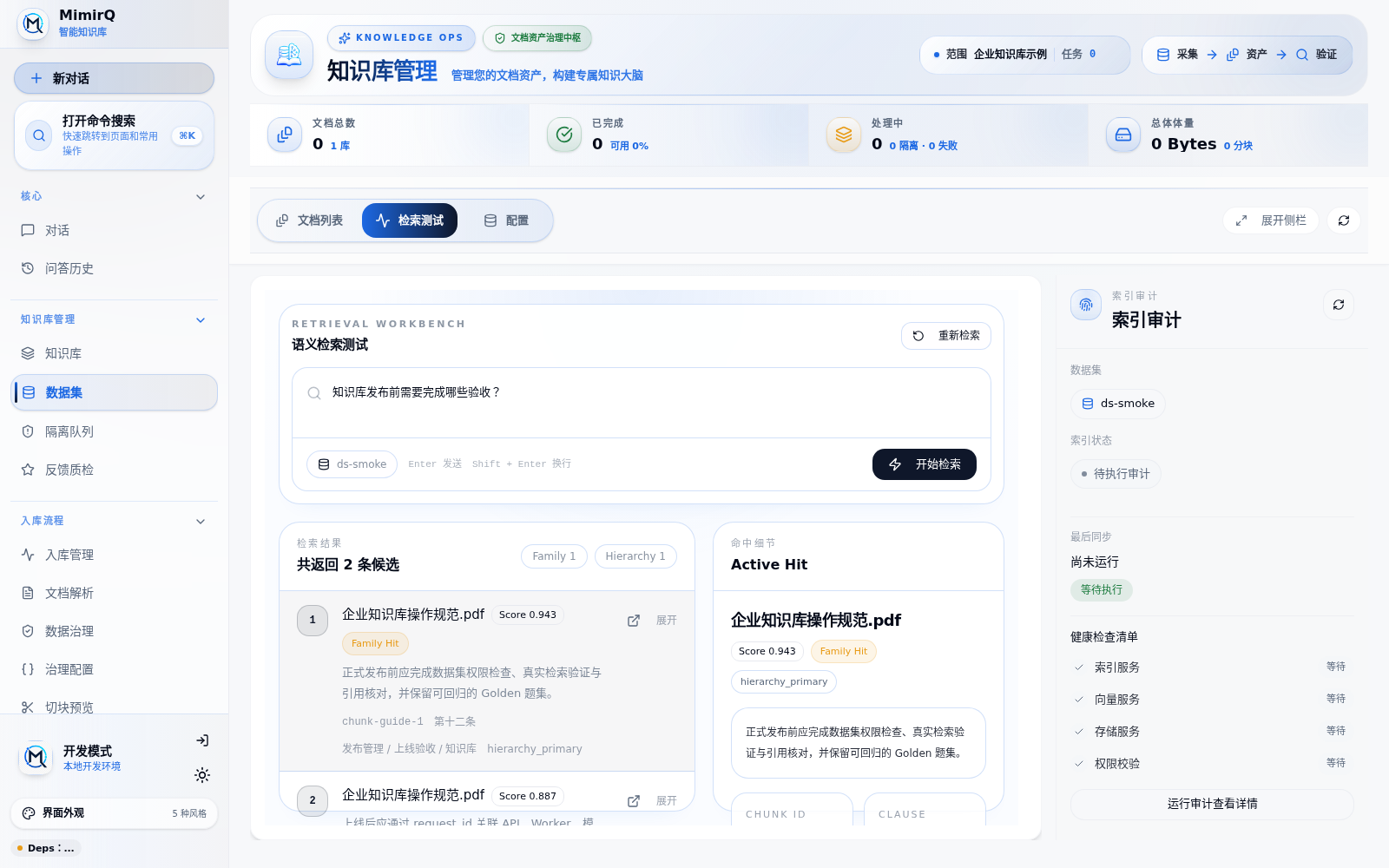

Run a retrieval test

1. Open /knowledge and select the dataset.
2. Switch to the retrieval-test tab.
3. Query the unique phrase or a known-answer question.
4. Inspect chunks, sources, scores, channels, and trace data.

The ranked candidates and active-hit detail should expose where evidence came from and how it was scored.

If nothing is returned, check document completion, chunks, index state, dataset scope, and ACL before changing prompts.

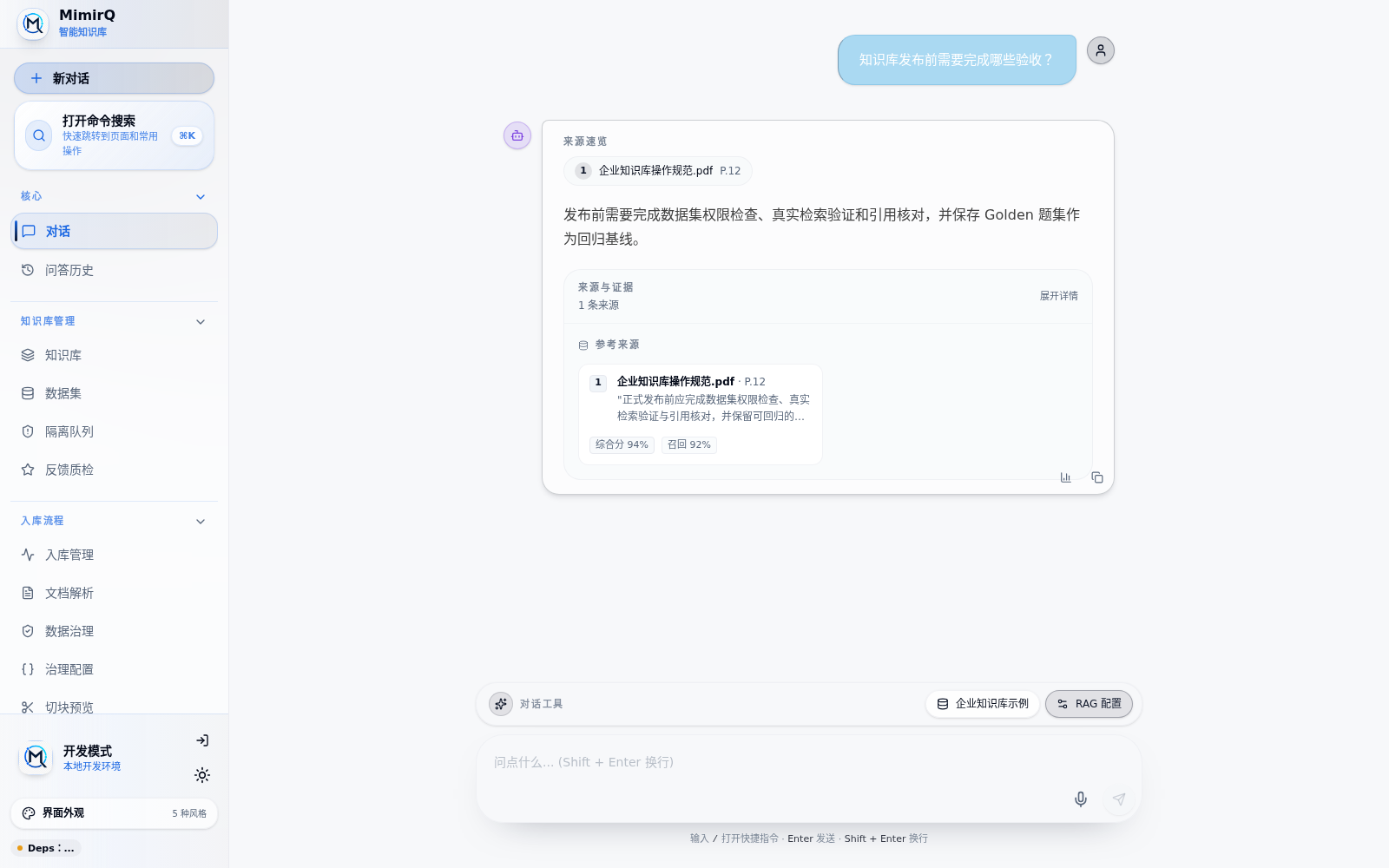

Run a cited chat

1. Return to /.
2. Use 选择数据集 (Select dataset) to choose the dataset.
3. Ask a question that only the test file can answer.
4. Expand 来源与证据 (Sources and evidence).
5. Confirm that the citation points to the correct file and supporting text.

A generated answer completes the loop only when its file, page, and supporting evidence remain inspectable.

The loop passes only when the document is completed, retrieval finds the expected evidence, the answer follows that evidence, and the citation is inspectable. API users can follow Upload and chat and Knowledge-base QA.

3. Operate knowledge assets

Work	Entry	Rule
Dataset and permissions	/datasets	Split by department, sensitivity, or embedding runtime
Documents and batch actions	/knowledge	Inspect the failure before retrying
Upload and connectors	/knowledge/ingestion	Prefer connectors for recurring synchronization
Parsing	/parsing	Reparse after parser changes
Governance	/data-governance	Preview rules before applying them
Governance profiles	/data-governance/profiles	Version reusable cleaning policies
Quarantine	/knowledge/quarantine	Approve or reject with an audit trail
Chunk experiments	/chunk-preview	Compare strategies on representative samples

Changing the embedding model, provider, or vector dimension requires rebuilding affected indexes. Never mix incompatible embedding spaces in one index.

4. Retrieval, generation, and Dify

MimirQ evaluates evidence retrieval separately from answer generation:

• Retrieval testing validates recall and reranking.
• Chat validates whether the LLM follows the evidence.
• If evidence is correct but the answer is wrong, inspect prompts, context trimming, and the LLM instead of adding question-specific retrieval rules.

Dify can consume MimirQ through two paths:

• External Knowledge API: POST /api/v1/integrations/dify/retrieval.
• Workflow HTTP node: Dify sends the query, dataset scope, and filters; MimirQ returns evidence and trace data.

Dify owns orchestration and generation, while MimirQ keeps governance, retrieval, reranking, permission filtering, and evidence. Use OpenAPI for the current request schema.

5. Evaluation and feedback

Open /evaluations to create or generate candidate questions, review them into a Golden set, record a baseline, and rerun it after parsing, chunking, embedding, reranking, or prompt changes. Track completion, answer quality, evidence coverage, latency, and failure causes.

Use /knowledge/feedback for production hard cases, /knowledge/evidence to inspect evidence, and /reports for dataset and RAG audit reports. Promote confirmed hard cases into the Golden set.

Knowledge graph features are available under /datasets/{dataset_id}/kg and /graph when enabled. KG is an optional retrieval channel, not a replacement for the base retrieval path.

6. Permissions and administration

Entry	Purpose
/settings/rbac	Members, roles, and permissions
/settings/groups	Groups and membership
/settings	Tenant and feature configuration
/audit	Audit events
/usage	Usage records

Dataset access modes are all_team_members, only_me, and partial_members; document ACLs can further restrict results. Production must use JWT, OIDC, or SAML rather than an exposed debug-header mode.

7. Start, stop, back up, and upgrade

Goal	Command	Data	Images
Status	make ps	Keep	Keep
Logs	make logs	Keep	Keep
Stop	make down	Keep	Keep
Empty-data rebuild	make docker-reset	Delete	Keep
Full local rebuild	make docker-purge	Delete	Delete

The last two commands are irreversible. Complete a backup and restore drill first. MimirQ uses the isolated Compose project name mimirq; see Deployment for PowerShell, Dify coexistence, and legacy recovery. Do not substitute a global docker system prune for project-scoped cleanup.

8. Troubleshooting order

Symptom	Check first
UI unavailable	Docker, make ps, Web/API logs
Owner cannot register	Existing tenant/owner and consistent INITIAL_ADMIN_* values
Document is stuck	Worker, Redis, parser, and failure details
Completed but no retrieval	Chunks, index, dataset scope, ACL, embedding runtime
Correct evidence, wrong answer	Prompt, context trimming, LLM, and citations
403	Tenant, role, dataset permission, and document ACL
High latency	Trace stages, model services, Milvus, and admission control
Cleanup mentions Dify	Stop immediately, do not prune, follow deployment recovery steps

Keep the returned request_id and use it to correlate API, worker, model-service, and proxy logs. See Health checks and Observability.

9. Production checklist

• Real LLM, embedding, and reranker calls work; readiness alone is insufficient.
• A representative document passes parsing, chunking, indexing, retrieval, cited chat, and evaluation.
• Authentication, RBAC, dataset permissions, and document ACLs are verified.
• Golden cases and release thresholds are stored.
• API, worker, and data dependencies have monitoring and alerts.
• A backup was restored and retrieval was validated afterward.
• Upgrade, migration, rollback, and concurrency were tested in staging.

The complete offline repository manual is MimirQ Full Operation Guide.
